Analyze how to distinguish between board-to-board, wire-to-board, and wire-to-wire connectors

Author: Update:2019-10-8 9:49:09

In daily life, if there are triplets in a family, it is a headache to distinguish them as relatives. In the connector, there are also such headaches, such as board-to-board connectors, wire-to-board connectors, and wire-to-wire connectors are easy to confuse, and the name is big. So how do you distinguish between the three connectors: board-to-board, wire-to-board, and wire-to-wire? Don’t bother with it. The electric bee is recommended by electronics engineers to popularize board-to-board connectors and wire-to-board connectors. The difference between the three pairs of wire-to-wire connectors.

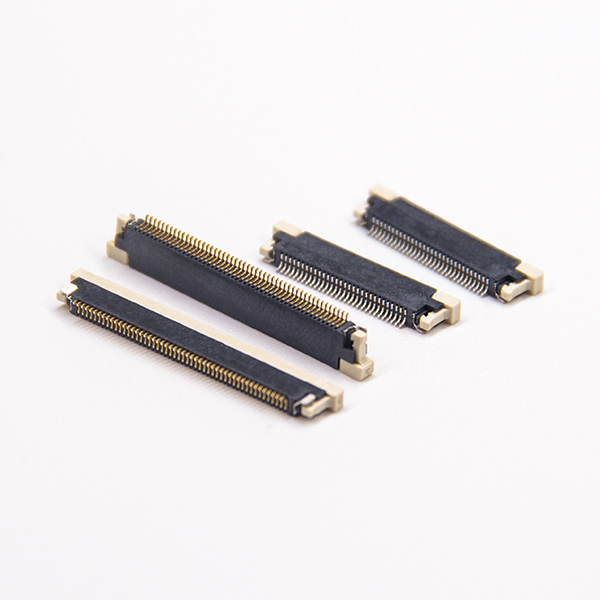

First, board to board connector:


The board-to-board connector (Board-to-board Connectors) is the most powerful connector product among all connector product types. Currently, the main spacing of board-to-board connectors is 0.4mm and 0.5mm. 0.635mm, 0.8mm, 1.00m, 1.27mm. Board-to-board connectors are mainly used in power systems, communication networks, financial manufacturing, industrial automation, medical equipment, office equipment, smart home appliances, military manufacturing and other industries.


Second, wire-to-board connector:


The so-called wire-to-board connector is the connector that connects the wires and the circuit board. The function of the connector is mainly to transmit power and signals. Therefore, the wire-to-board connector can be said to be the ancestor of all the linkers, according to various purposes and requirements. Different types of wire-to-board are numerous, but in the information industry, most of them are distinguished by the distance between the pin and the foot and the current and voltage transmitted. The main application areas of wire-to-board connector products include commercial electronic equipment, household appliances and other general industrial and commercial fields using auxiliary circuits.

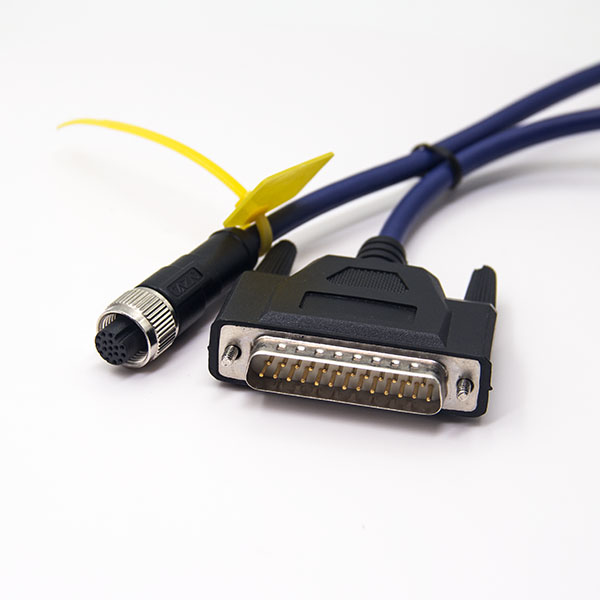

Third, wire-to-wire connector:


The wire-to-wire connector includes a wire-to-pair cable or a cable-to-cable cable, and is characterized in that two single-wire individuals or two of the two cables are permanently connected to each other. These permanent connections are more commonly found in fixed connection center-to-wire connections and IDC connections. Wire-to-wire connector products are mainly used in automotive, communications, consumer electronics, data processing, industrial machinery and other fields.




After reading the above, you should have a basic understanding of the "board-to-board connector, wire-to-board connector, wire-to-wire connector", and more technical articles on the wire connector follow us Will continue to organize and publish on the information channel. If you need to purchase board-to-board, wire-to-board, and wire-to-wire connectors, please call our hotline at 400-6263-698, and professional engineers will be at your service for free. The electric bee is an electronic platform with many years of professional experience. It is a professional connector supply platform. The product quality is reliable and the after-sales system is perfect, which is worthy of your trust.
